| Suitable fibre-optic cable : LL 3 plastic fibre-optic cables |
| Scanning range : Depends on fibre-optic cable used |
| Recommended operating range : 0...460 mm (through-beam system) (with tip adapters 0...2500 mm) |
| Recommended operating distance : 0...90 mm (proximity system) |
| Sensitivity adjustment : Potentiometer, 7 turns |
| Light source, light type : LED, visible red light |
| Light spot diameter of LL 3 : Depends on scanning range |
| Disp. angle of LL 3 fibre-optic cable : Approx. 65° |
| Supply voltage : 10 ....30VDC |
| Switching outputs : NPN: open collector: Q |
| Output current IA : max. 100 mA |
| Light receiver, switching mode : Light-/dark-switching8) |
| Response time : ≤ 0.35 ms |
| Connection types cable : PVC, 2 m; 3 x 0.2 mm2, l 4.0 mm |

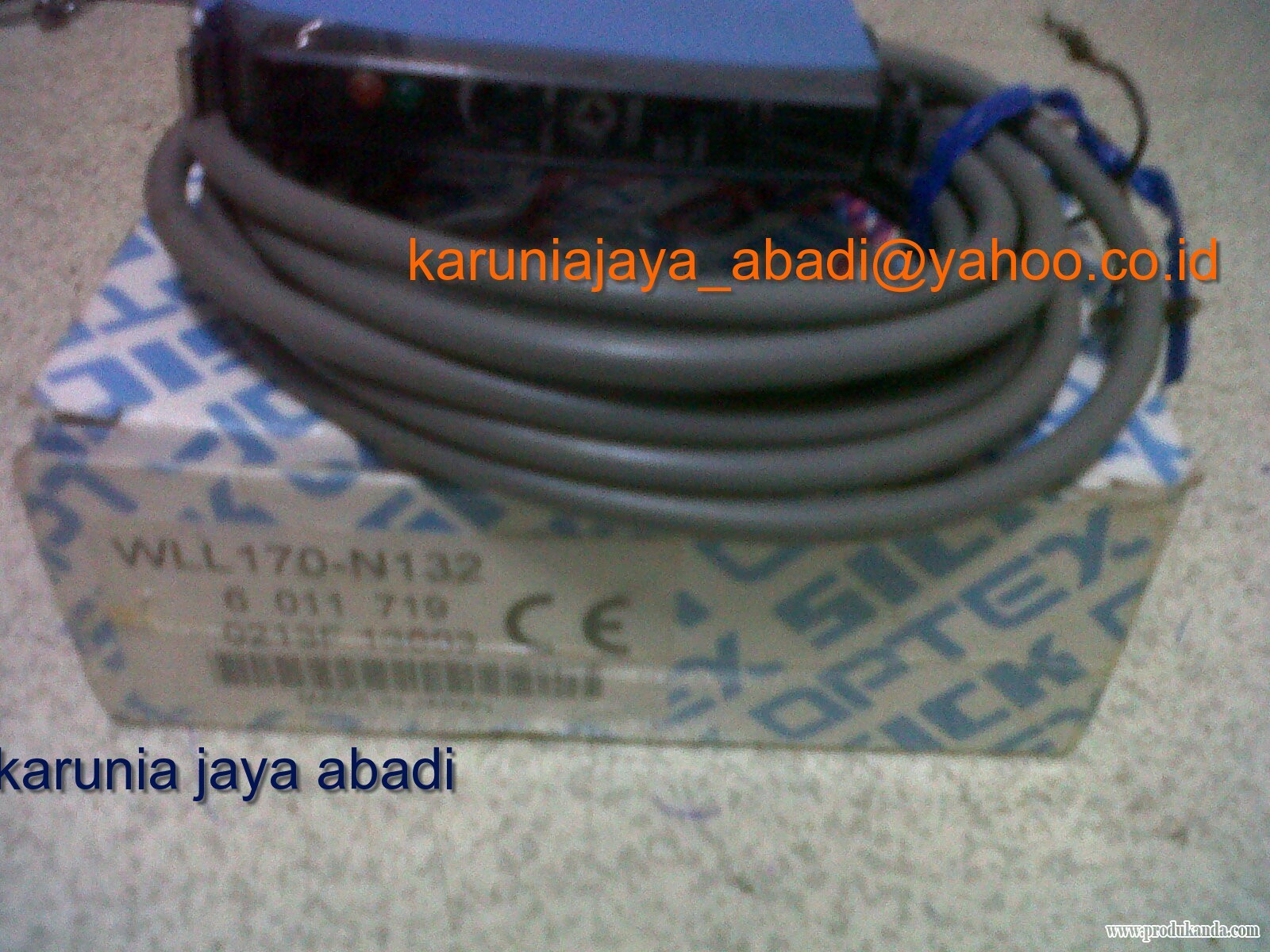

WLL170-N132 Sick Optex (Optic) part number 6011719 . Equivalen dengan Optex VRF-N part number 1313
Harga :
CALL
Merk :
Sick Optex
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Dilihat :
526 Kali
Update Terakhir :
08-09-2014 12:51
Dapatkan Spesifikasi Harga WLL170-N132 Sick Optex (Optic) part number 6011719 . Equivalen dengan Optex VRF-N part number 1313 Produk Terbaik dari
CV. Karunia Jaya Abadi Omron, Sick, Thermocouple, Keyence, Sun-X, Grainger,
