| WLL 170-2, red light, manual sensitivity adjustment - DC |
| Supply voltage: 10 V DC ... 30 V DC |
| Dimensions (W x H x D): 10.5 mm x 35.5 mm x 83.7 mm |
| Sensing range max (through-beam system): 0 ... 4,000 mm |
| Fibre-optic cable (through-beam system) : LL3-TB02 and tip adapter LL3-TA01 |
| Sensing range: 0 mm ... 160 mm, proximity system, 0 mm ... 700 mm, through-beam system |
| Fibre-optic cable (proximity system): LL3-DK06 |
| Operating range, recommended : 0 ... 700 mm |
| Fibre-optic cable (through-beam system) : LL3-TB01 |
| Adjustment: Potentiometer, 10-turn |
| Switching outputs : NPN: open collector: Q |
| Switching mode : Light/dark switching, switchable |
| Switching mode selector: Selectable via light/dark selector |

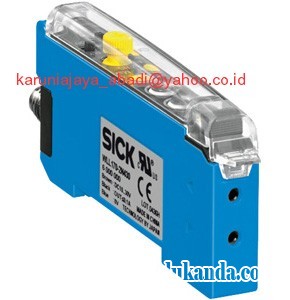

WLL170-2N132 Photoelectric Switch Fiber Optic , NPN NO/NC , Adjustment potensio 10 turn
Harga :
CALL
Merk :
Sick
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Dilihat :
499 Kali
Update Terakhir :
21-09-2014 01:30
Dapatkan Spesifikasi Harga WLL170-2N132 Photoelectric Switch Fiber Optic , NPN NO/NC , Adjustment potensio 10 turn Produk Terbaik dari
CV. Karunia Jaya Abadi Omron, Sick, Thermocouple, Keyence, Sun-X, Grainger,
