| Product characteristics | ||||||
| Temperature sensor for connection to evaluation units | ||||||
| Ø 6 mm | ||||||
| Cable with connector | ||||||
| Installation length EL: 50 mm | ||||||
| Connection to control monitor TP / TR | ||||||
| Measuring range: -50...250 °C / -58...482 °F | ||||||
| Measuring element: 1 x Pt 100, to DIN EN 60751, class A | ||||||
| Application | ||||||
| Application | liquids and gases | |||||
| Minimum installation depth [mm] | 15 | |||||
| Electrical data | ||||||
| Connection to control monitor | TP / TR | |||||
| Protection class | III | |||||
| Measuring / setting range | ||||||
| Measuring range | -50...250 °C | -58...482 °F | ||||
| Accuracy / deviations | ||||||
| Accuracy | ± (0.15 K + 0.002 x |t|) | |||||
| Reaction times | ||||||
| Dynamic response T05 / T09 [s] | 11 / 37 *) | |||||
| Environment | ||||||
| Protection | IP 67 | |||||
| Tests / approvals | ||||||
| MTTF [Years] | 22831 | |||||
| Mechanical data | ||||||
| Materials (wetted parts) | stainless steel 316Ti / 1.4571 | |||||
| Probe diameter [mm] | 6 | |||||
| Probe length L [mm] | 50 | |||||
| Installation length EL [mm] | 50 | |||||
| Housing materials | stainless steel 316Ti / 1.4571; PFA/PTFE | |||||
| Weight [kg] | 0.067 | |||||
| Electrical connection | ||||||
| Connection | PTFE cable / 2 m; with M12 connector | |||||
Wiring
|
||||||
| Remarks | ||||||
| Remarks |
|
|||||

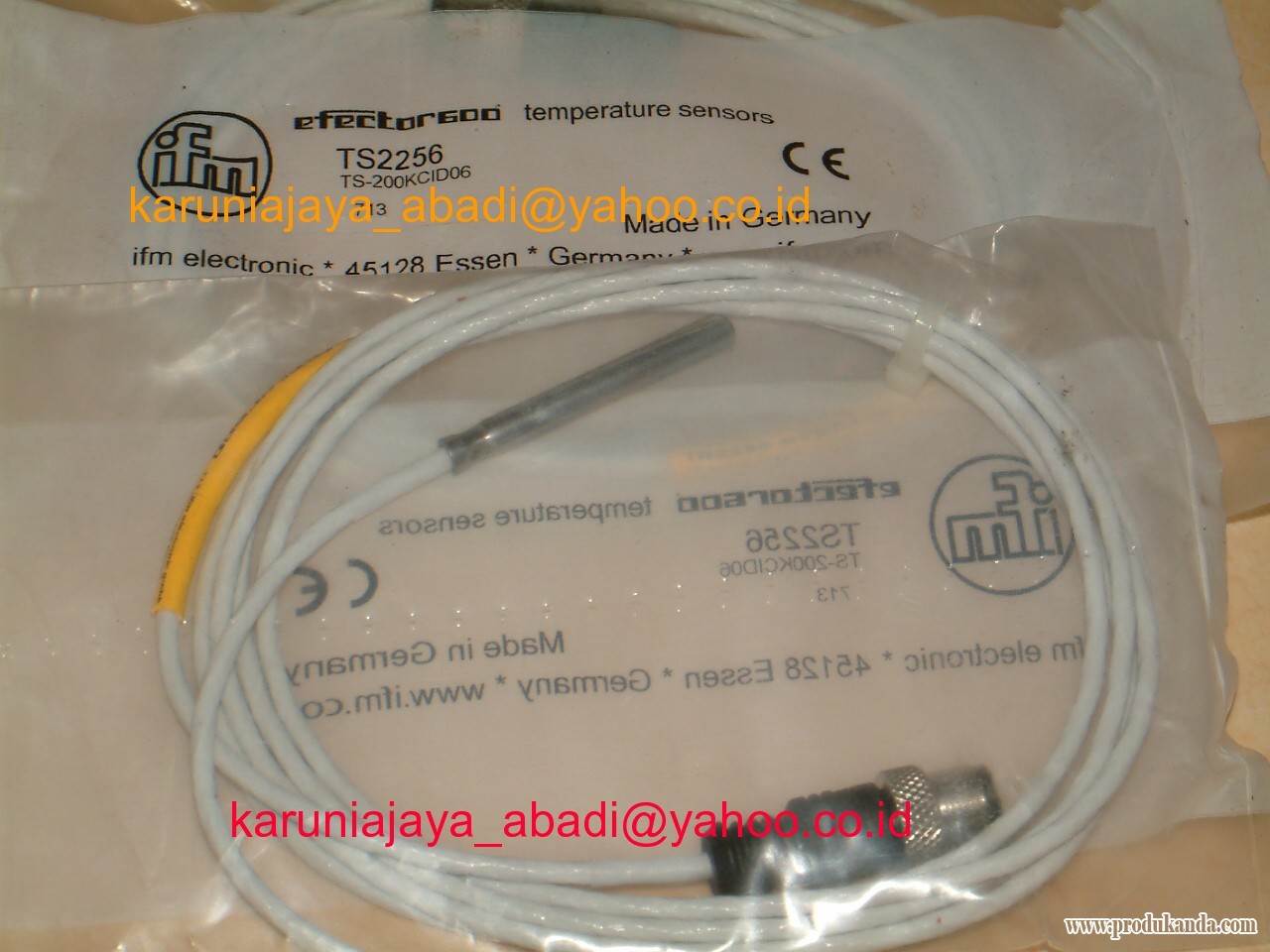

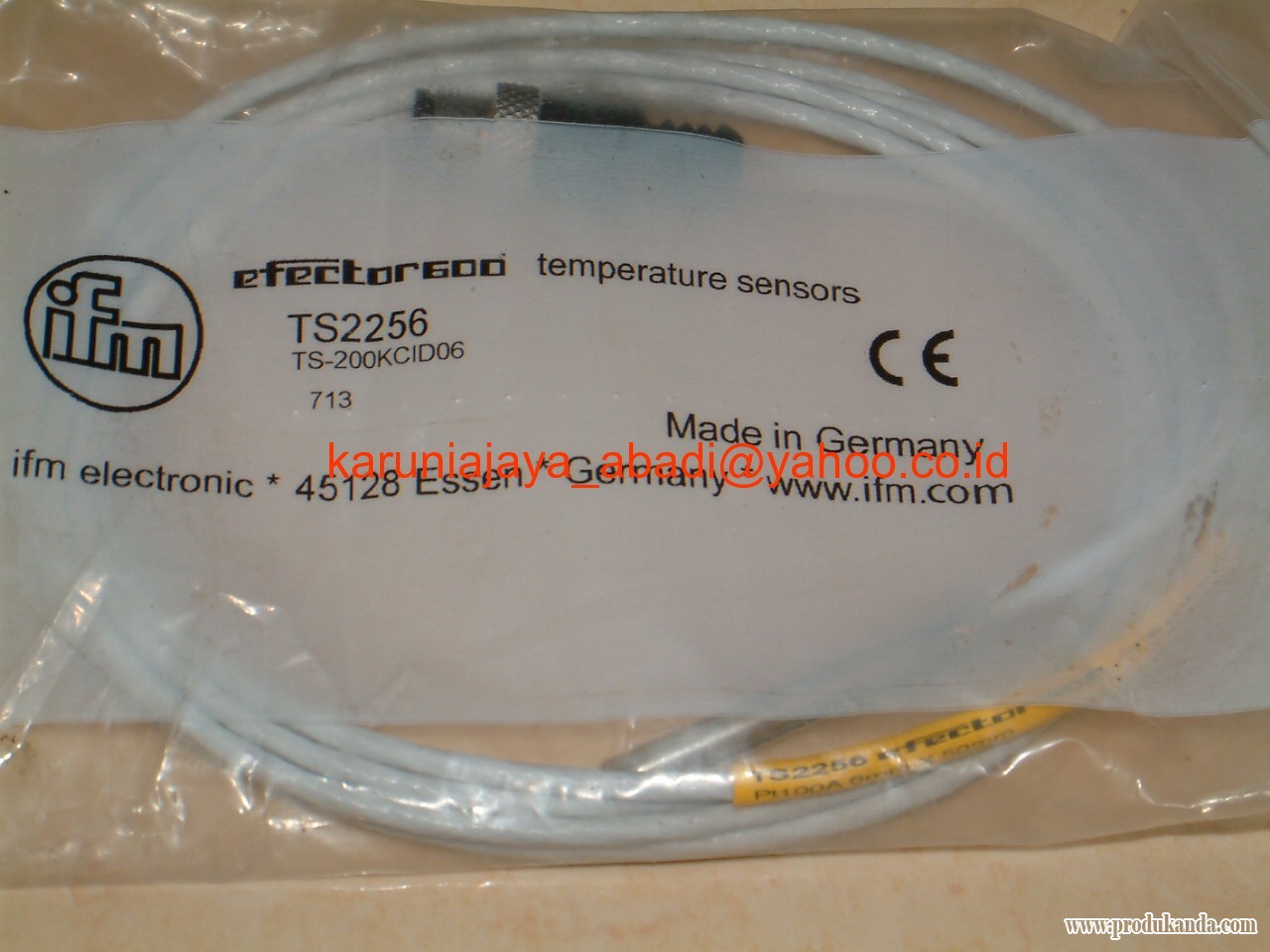

TS2256 IFM Efector Temperature Sensors
Harga :
CALL
Merk :
IFM Efector
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Dilihat :
312 Kali
Update Terakhir :
13-04-2016 10:00
