| Type : 1-line Expansion unit |
| Light source : Red LED |
| Sensitivity adjustment/Mode selection : Button |
| Response time : 250 μs |
| Operation mode : LIGHT-ON/DARK-ON (switch-selectable) |
| Display indicator : Output indicator: Red LED, Stable operation indicator: Green LED Calibration indicator: Orange LED |
| Timer function : ON-delay: 40 ms/ OFF-delay: 40 ms/ Timer OFF (switch-selectable) |
| External calibration input signal : Non-voltage input (contact, solid state) |
| Control output : NPN open-collector 100 mA max. (40 VDC max.), Residual voltage: 1 V max. |
| Stability output : NPN open-collector 50 mA max. (40 VDC max.), Residual voltage: 1 V max. |
| Protection circuit : Reversed polarity protection, over-current protection,surge absorber |
| No. of expansion units : Up to 16 expansion units can be connected (a total of 17 units) |
| Mutual interference suppression : 4 |
| Power supply : 12 to 24 VDC (±10%), ripple (p-p): 10% max. |

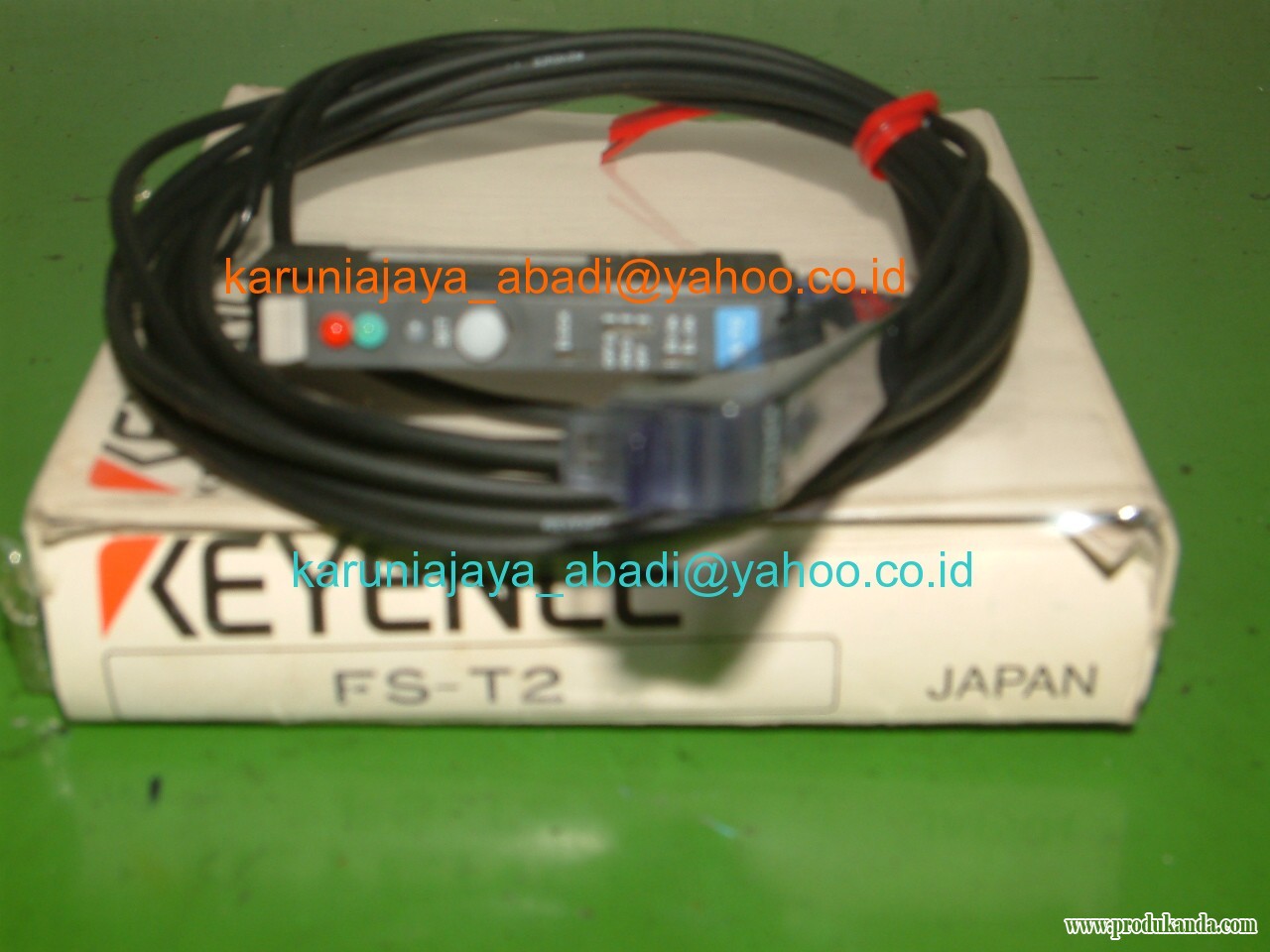

FS-T2 Keyence ( 1-line Expanion Unit )
Harga :
CALL
Merk :
Keyence
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Jawa Barat - Bekasi
Dilihat :
329 Kali
Update Terakhir :
09-09-2014 01:46
Dapatkan Spesifikasi Harga FS-T2 Keyence ( 1-line Expanion Unit ) Produk Terbaik dari
CV. Karunia Jaya Abadi Omron, Sick, Thermocouple, Keyence, Sun-X, Grainger,
